Mono-Coil (Liner Tube)

Features: No interlockings, but rather a spring-like stainless steel coil; Superior pliability; Resists lateral pressure; Ultra-thin; No limitation on the inner or outer diameter; Normally used with PVC sheathing or stainless steel braiding applied to the exterior to prevent stretching.

Description

■ Materials

Liner: Stainless Steel, SK Material, Flat Wire
Sheathing: Polyvinyl Chloride (PVC), Stainless Steel Braiding

■Applications

-Endoscopes (medical equipment)

-Optical fiber and sensor cable protection

-Guide shafts, concrete vibrators, etc.

-Guide shafts for lawnmowers (SK Material, Flat Wire).

Add Inquiry (0)

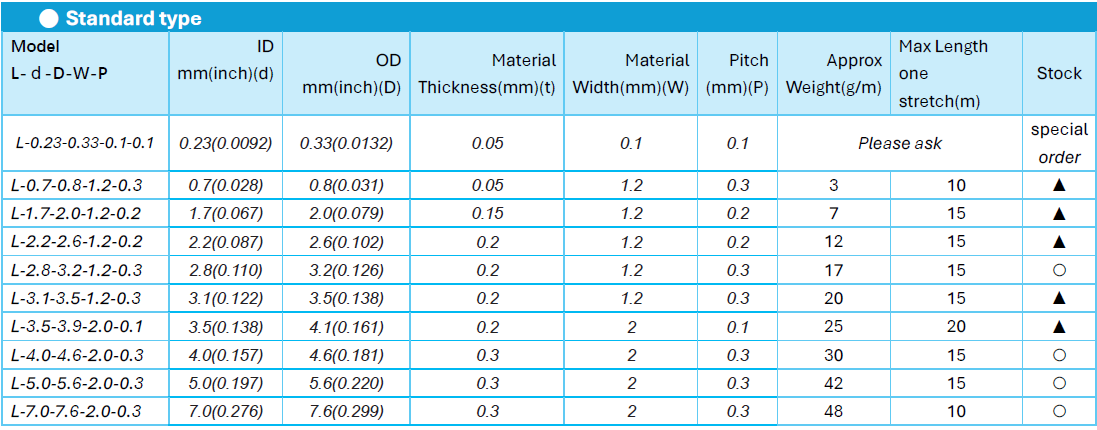

○= standard stock item. Stock quantity will be 10 to 500m.
▲=contact us

■ About Standard Length
-Standard Length is approximately 100m, obtained by connecting several shorter lengths (10 to 16 meters each piece)

-Longer lengths (over 100m, depending on the material and finished product) are available upon request.

■ Note

1.Inner diameters from 0.1mm up to approximately 22mm available
Product manufacturing is scheduled after receiving order (Some sizes are in standard stock)

2.Custom lengths available.

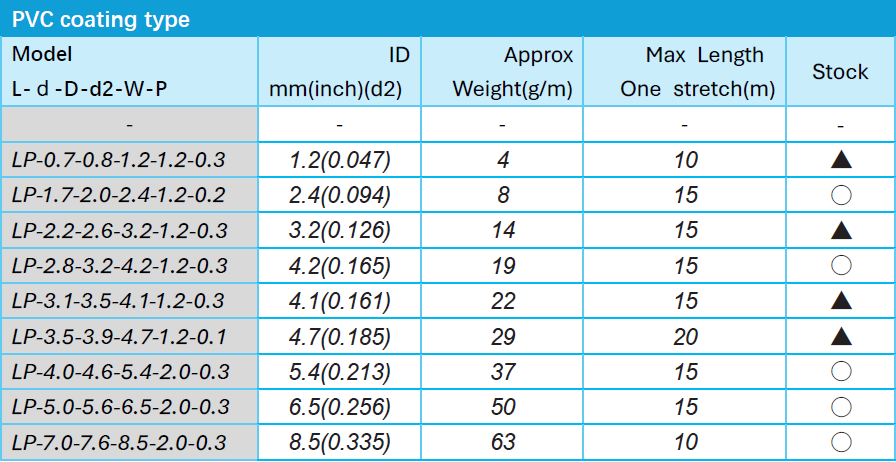

3.For PVC-sheathed models, D2 in the chart (see below) shows the outer diameter after sheathing.

4.For extra-sturdy lateral pressure protection, a double-layered mono-coil structure is also available.
